TILE INSERT FLOOR WASTE

Tile Insert Floor Waste – The Spillway

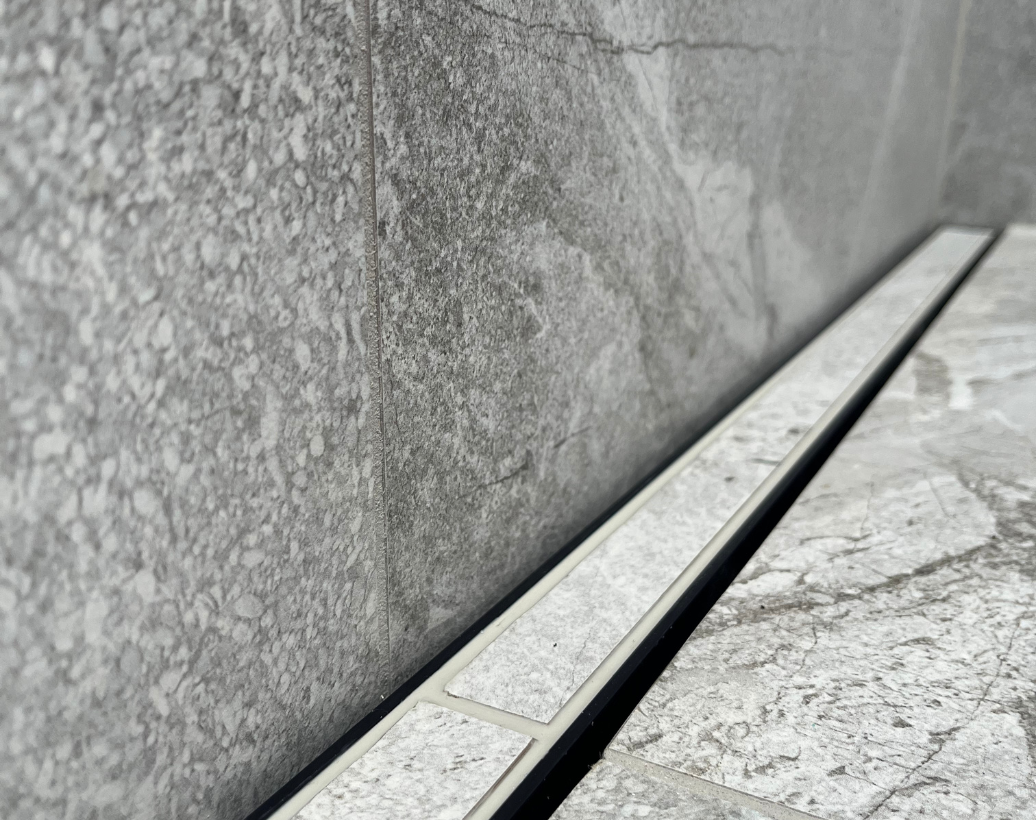

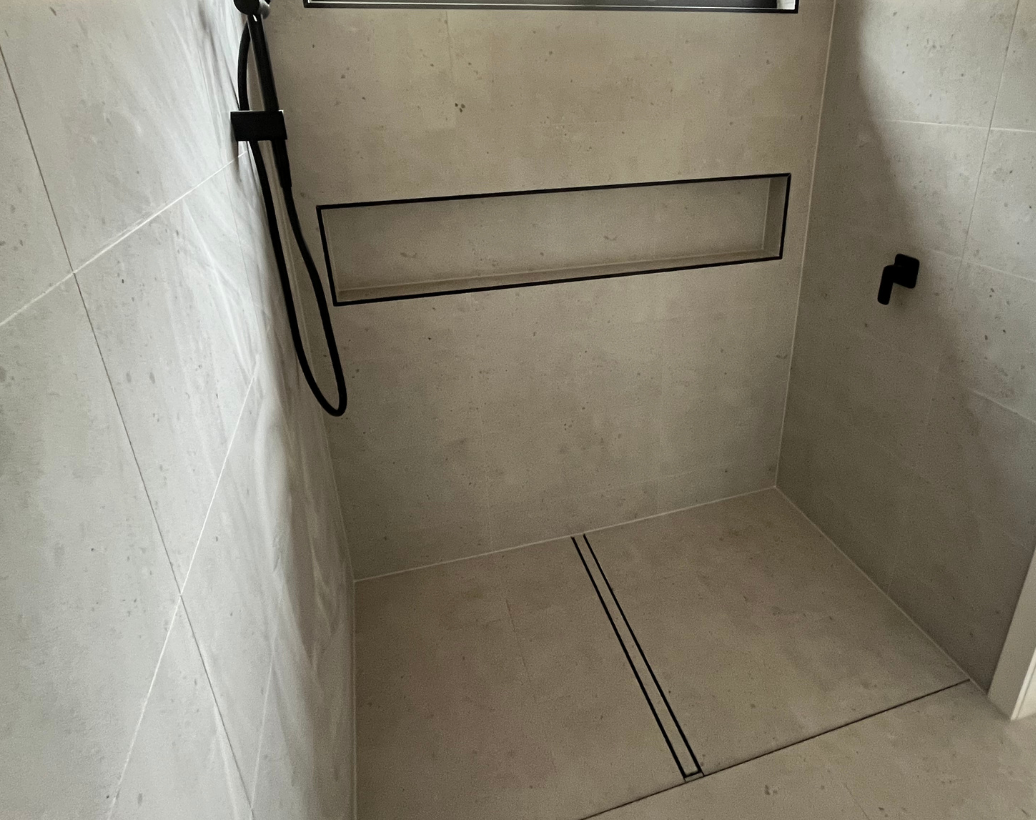

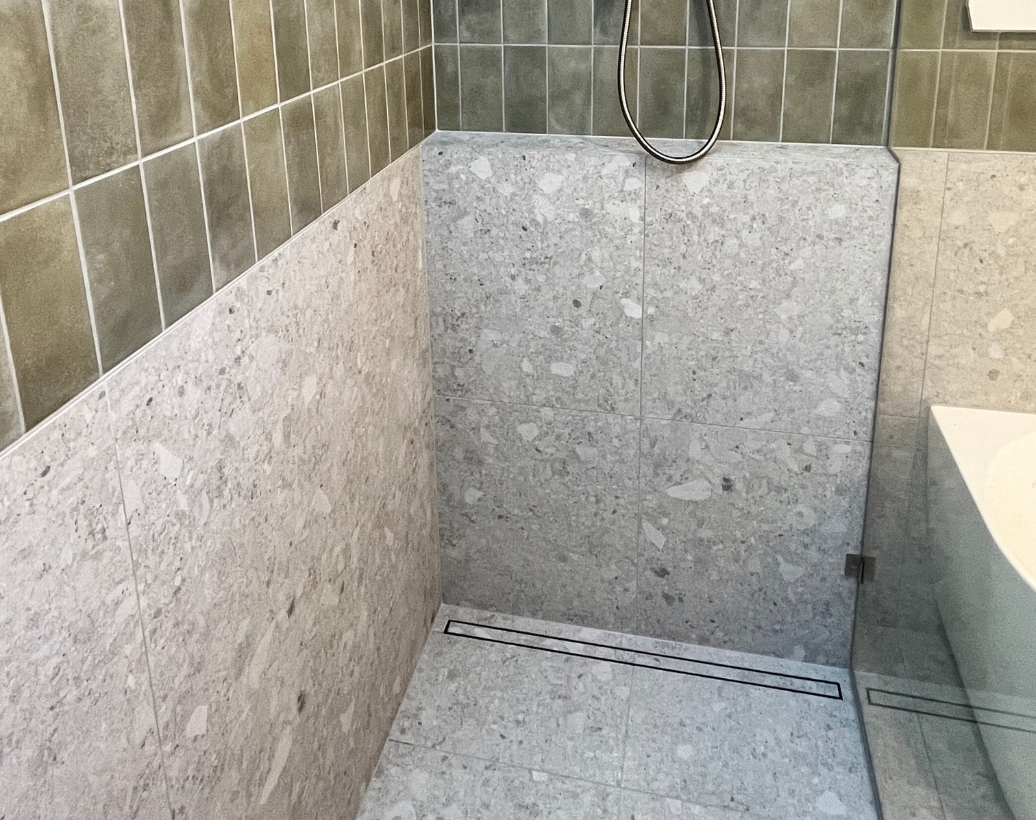

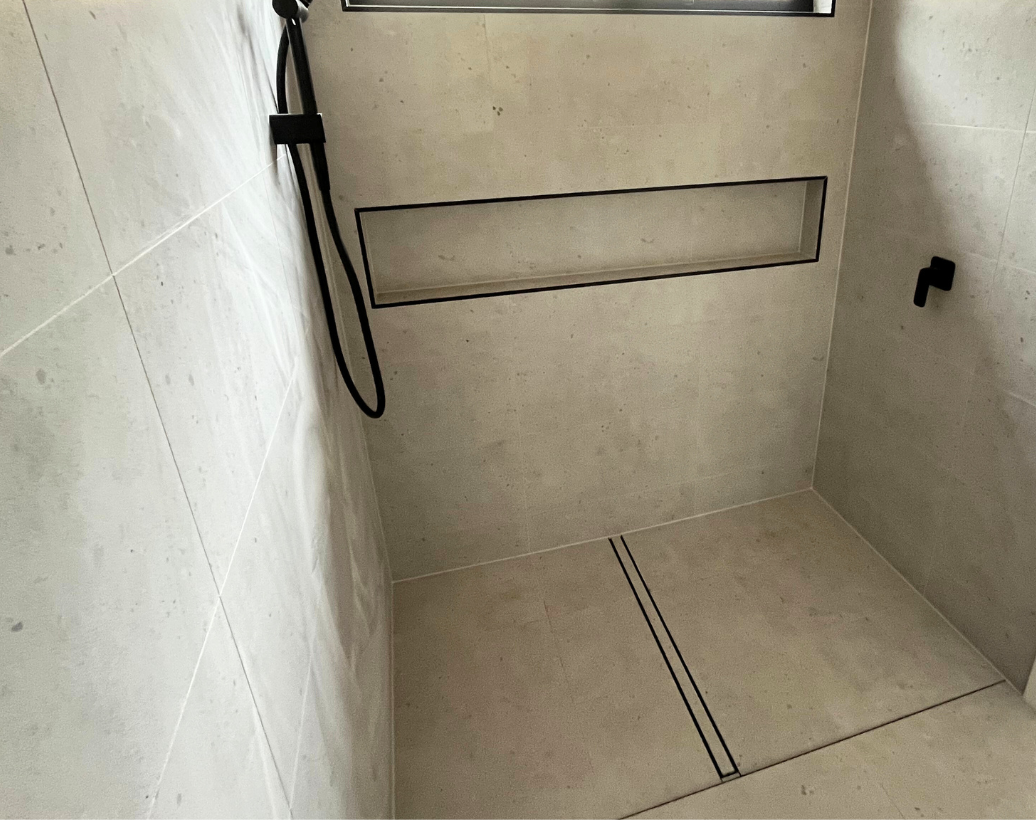

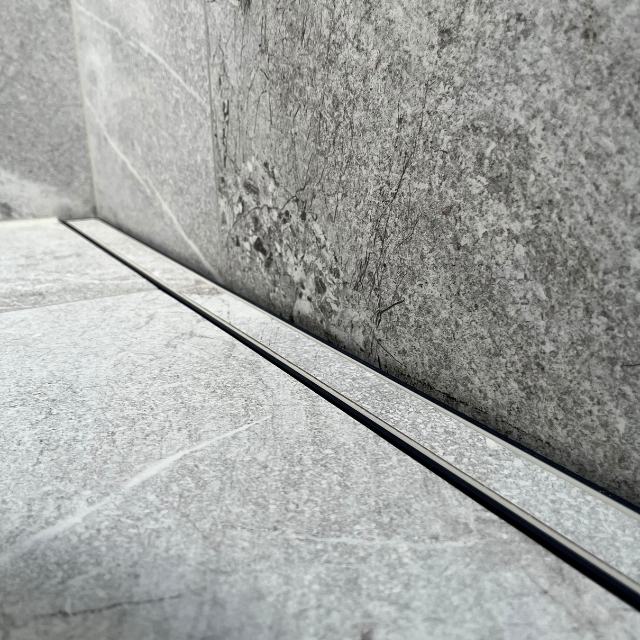

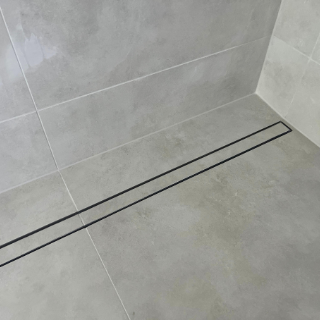

The tile insert floor grate delivers a sleek, contemporary look with uninterrupted visual flow. It integrates seamlessly with your tiles for a flush, streamlined finish, adding a touch of modern luxury to any bathroom design.

Spillway Shower Grate

The Spillway shower grate is a versatile, customisable drainage solution, ideal for bespoke installations. Featuring a tile insert tray between two drainage slots, it accommodates 15mm tiles for a sleek, integrated look.

Its flexible spigot outlet allows easy alignment with new or existing plumbing, while the removable upstand supports both wall and off-wall waterproofing. Built from durable ABS plastic and supplied with height-adjustable spacers, the Spillway grate ensures a flush tile finish, long-term performance, and modern style.

Designed to withstand the demands of the bathroom environment and backed by a 10-year warranty for complete peace of mind.

Trusted by Industry Professionals

Strip Grate Australia is a trusted name among Australian builders, plumbers, and architects, known for delivering durable, compliant shower drainage solutions.

We proudly collaborate with the Australian Waterproofing Institute and Complibuild, where our products are recommended as reliable waterproofing and drainage solutions.

Ready to Get Started?

View our listed retailers or shop online with participating suppliers for fast, convenient Click & Collect options.

Need help with setup? Our products are designed for easy on-site installation, and we offer step-by-step guides and instructional videos to make the process stress-free and straightforward.



KEY BENEFITS

Spillway Tile Insert Drainage System

The spillway variable-length drainage system features a tile insert tray positioned between dual drainage slots, seamlessly integrating with your shower floor tiles. The result is a clean, streamlined finish that complements modern bathroom design.

38mm Slimeline Design

A sleek, modern profile that blends seamlessly into tiled bathrooms for an unobtrusive, minimalist look.

Customisation Made Easy

Flexible outlet positioning and multiple length options. Each unit comes as a complete kit, making cutting, joining, and installation easy.

Perfect Flush Finish

The included spacer system ensures the grate aligns precisely with tile height for a smooth, flush-to-floor result.



Durable Construction

The tile insert tray is finished in black to resemble a shadow line, creating the illusion that there is no waste on the floor.

Smart Design

The tile insert tray accommodates tiles up to 15mm thick, allowing a seamless match with your chosen tile and a clean, integrated finish.

Built-In Waterproofing Advantage.

Our uniquely engineered grate design allows the collection channel to be waterproofed in place before tiling. This innovative installation method eliminates water pooling and potential water damage, creating a fully watertight drainage system for long-term performance and peace of mind.

Peace of Mind Warranty

Backed by our 10-year warranty, giving you long-term confidence in performance and durability.





Strip Drain Installation Guides

The Insert Grate – Seamless Integration & Custom Fit

Our tile insert grate is designed to perfectly match your chosen tiles, offering a customised, minimalist finish. The variable 1200mm drainage system features a tile tray positioned between two drainage slots, and units can be joined together to create custom lengths for larger installations.

Strip Grate Spillway tile insert kitStrip Grate Spillway tile insert tray and collection channelStrip Grate spillway tile insert tray

Durable Construction

Finished in black, the tile insert tray creates a subtle shadow line, giving the illusion of no visible floor waste – ideal for achieving a sleek, architectural aesthetic.

Everything You Need in One Kit – The Spillway AIW023

Each kit includes all required components, Weld-On ABS glue, and easy-to-follow installation instructions – making on-site assembly quick, simple, and reliable.

Elevate Your Bathroom with the Spillway Tile Insert

Achieve a seamless, custom look with our minimalist tile insert drainage system – designed for performance, durability, and architectural style.

View our listed retailers or shop online for fast and convenient Click & Collect options.



Strip GrateStrip Grate



TILE INSERT – THE SPILLWAY SPECIFICATIONS

Cleverly Concealed, Seamlessly Integrated

The tile insert features a smart, concealed design that lets you install your bathroom tiles directly into the drain cover. This creates a sleek, flush finish with the floor, delivering a subtle and sophisticated aesthetic that blends effortlessly with your bathroom design.

Materials

ABS Collection Channel and Tile insert tray – Engineered for strength and durability, the ABS construction also allows for a glued, watertight plumbing connection – ensuring long-term reliability and compliance with Australian standards.

Lengths Available

1200mm

Outlet Size

Outlet Spigot



Collection Channel Upstand intact-For Against -Wall Installation

Spillway tile insert against the wall dimensions

 Collection Channel Upstand Removed – For Away – From-Wall Installation

Spillway tile insert away from the wall dimensions

Installation Instructions

View the installation instructions or print the PDF to take to site.

Download PDF

Parts List

Download the parts description and product codes here.

Download PDF

Adjustable Grate Height

Our VL Series includes grate height adjustment spacers to ensure a precise, flush

finish with your tiled floor.

Spacer Heights Available

10mm, 12mm, 14mm, 16mm, 18mm

Collection Channel and Insert Tray

Constructed from ABS plastic for structural strength and durability.

Designed to be glued using solvent-based ABS adhesive for a watertight seal.

Weld-On Glue Included

Each Tile Insert kit comes with Weld-On ABS interference glue, specifically chosen for strong, watertight bonding of the ABS collection channel components-making on-site assembly simple, secure, and reliable.

Warranty

10-Year Warranty for peace of mind and long-term performance.



WHY CHOOSE STRIP GRATE?

Designed for Performance, Built to Last

At Strip Grate, we engineer our shower grates to enhance water flow and integrate seamlessly

with your plumbing system. Our goal was simple: create a product that’s both stylish and durable, offering a long-lasting solution that stands the test of time.

With a focus on eliminating water pooling, ensuring bathroom safety, and delivering flawless installation, our grates are built for long-term performance and complete peace of mind.

Ready to Upgrade Your Shower?

Discover the perfect blend of style, durability, and performance with Strip Grate.

Explore our range today!

Shop Our Range

Strip Grate Gallery

Strip Grate Retailers

FAQS

What tile thickness does the Spillway tile insert floor waste support?

The Spillway Tile Insert is designed to support tile thickness ranging from 8mm to 15mm, ensuring a flush, seamless finish with most standard bathroom tiles.

Can The Spillway be cut to size for smaller showers?

Yes, the Spillway can be cut down to a minimum length of 350mm, making it ideal for small showers or even compact drainage areas like hand basins.

Is the upstanding required for every installation?

No. The upstand is only needed for against-wall installations to enhance waterproofing. For off-wall applications, it can be easily removed.

Where can I buy Strip Grate Spillway products?

You can purchase Strip Grate Spillway products through our listed retailers or via Click & Collect with participating Mitre 10, Home Timber and Hardware or Burdens Plumbing stores.  Product Code: AIW023

What is Strip Grate's Shipping and Returns Policy?

Our retail partners offer fast Australia-wide shipping, with Click and Collect available to selected stores. For returns, simply contact the store where you purchased your item to arrange the process.
